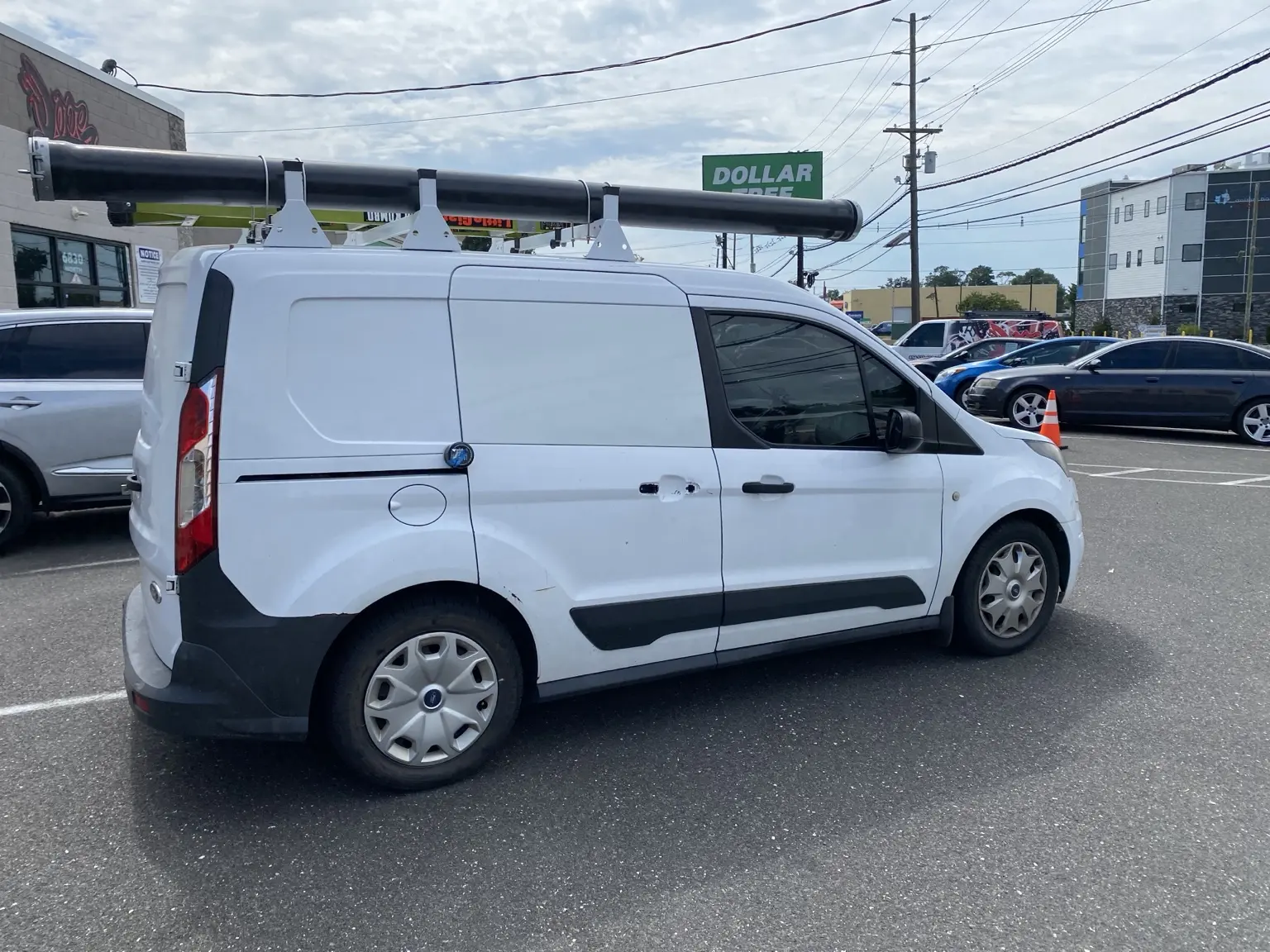

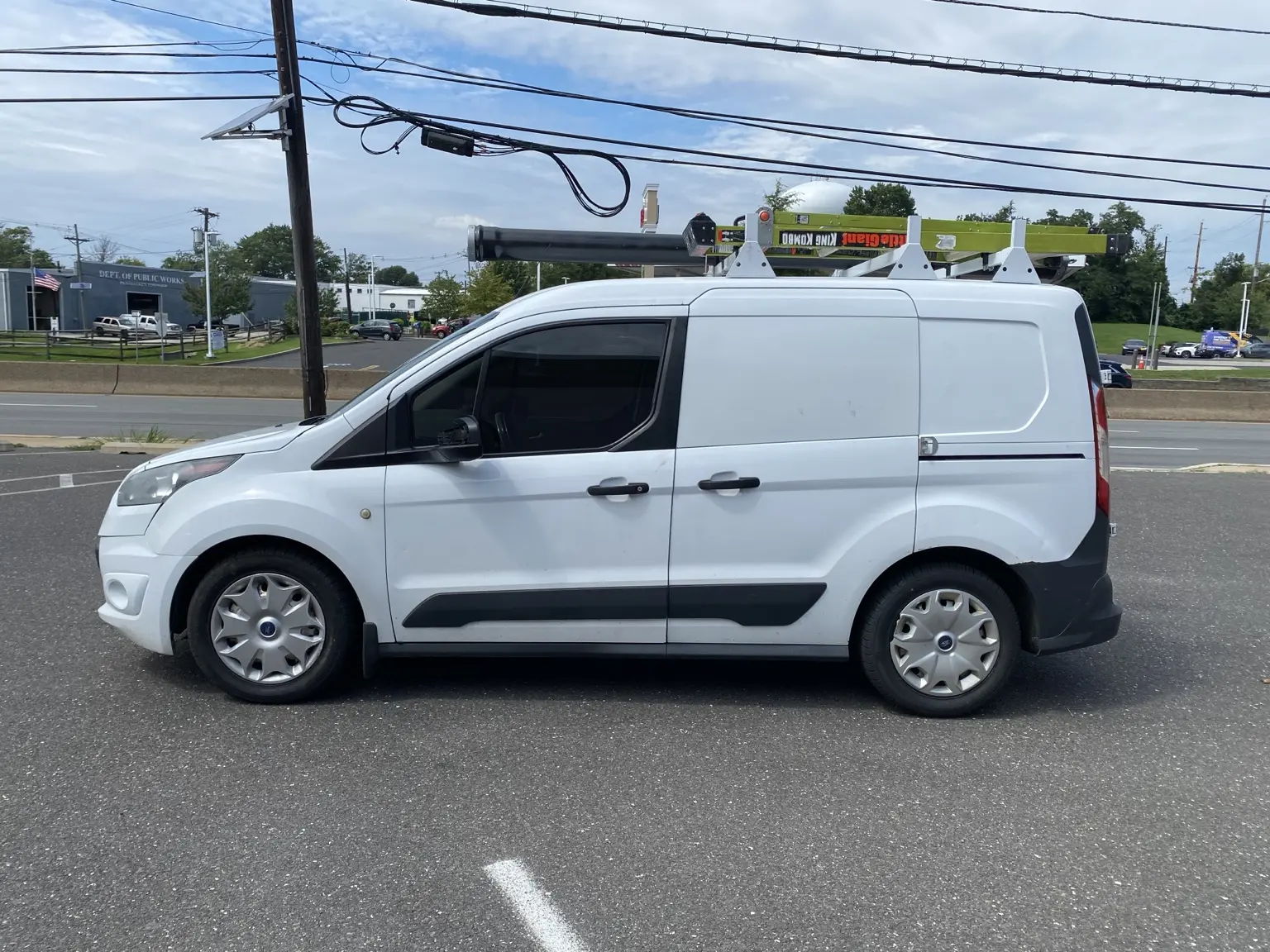

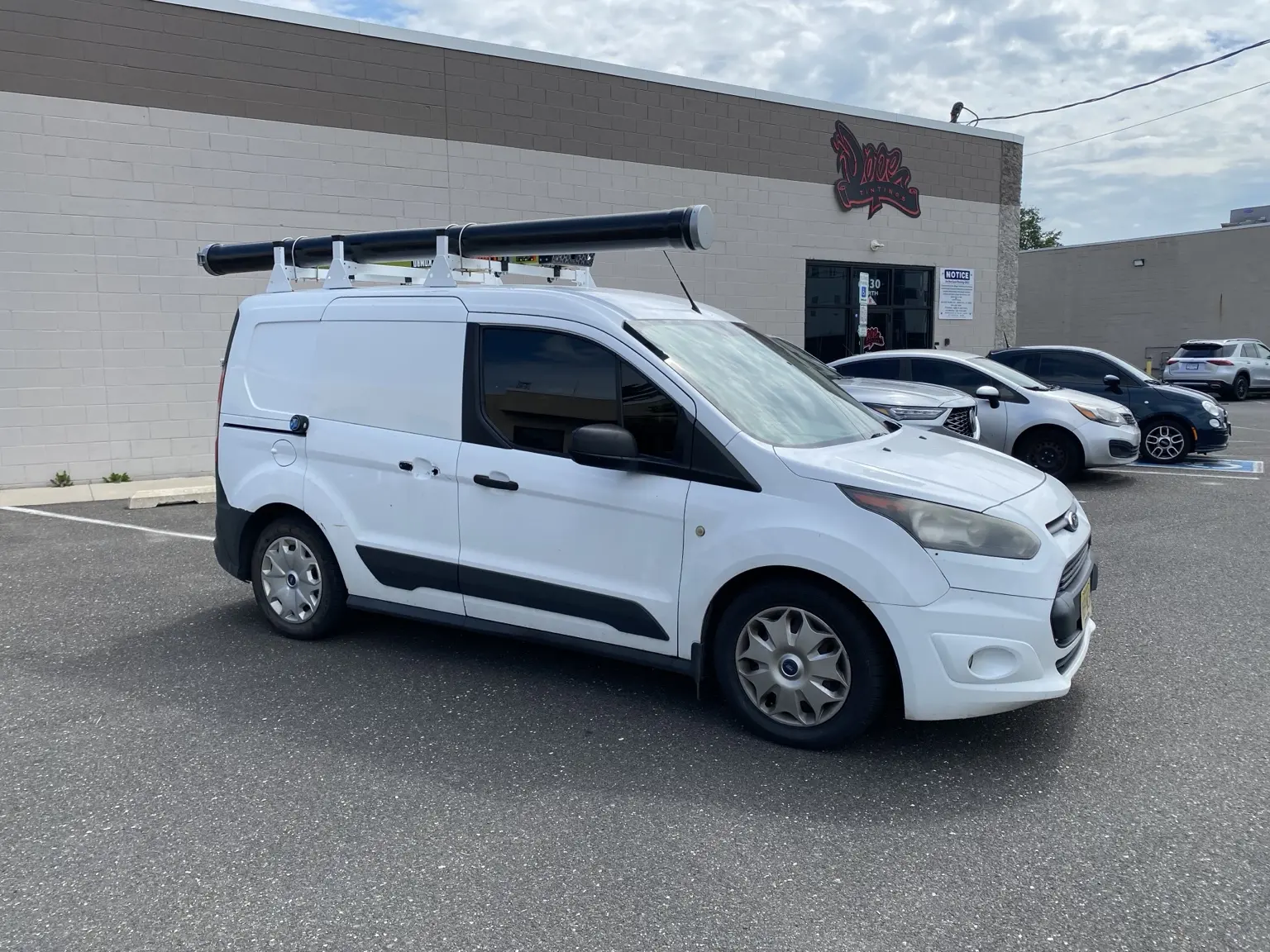

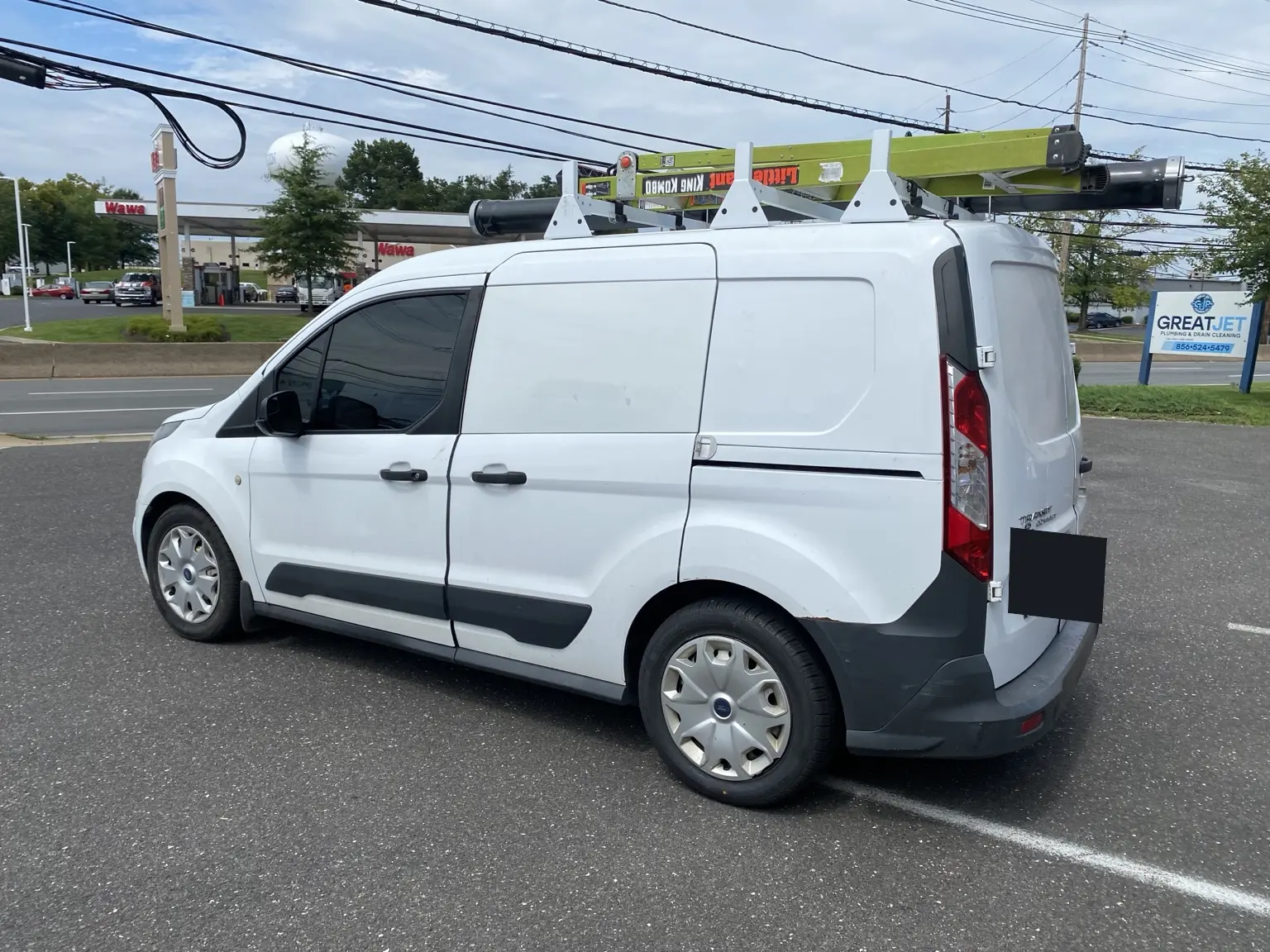

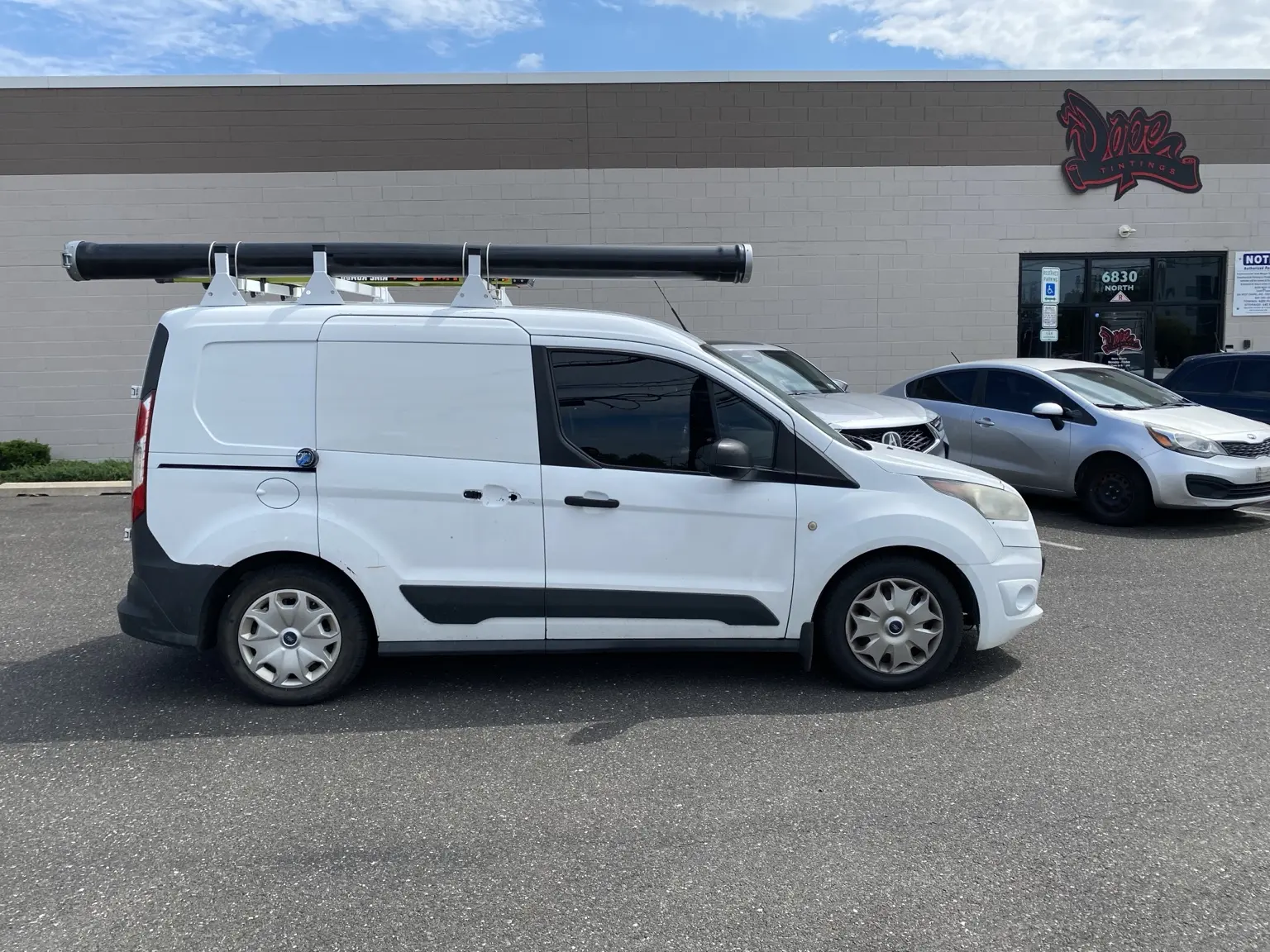

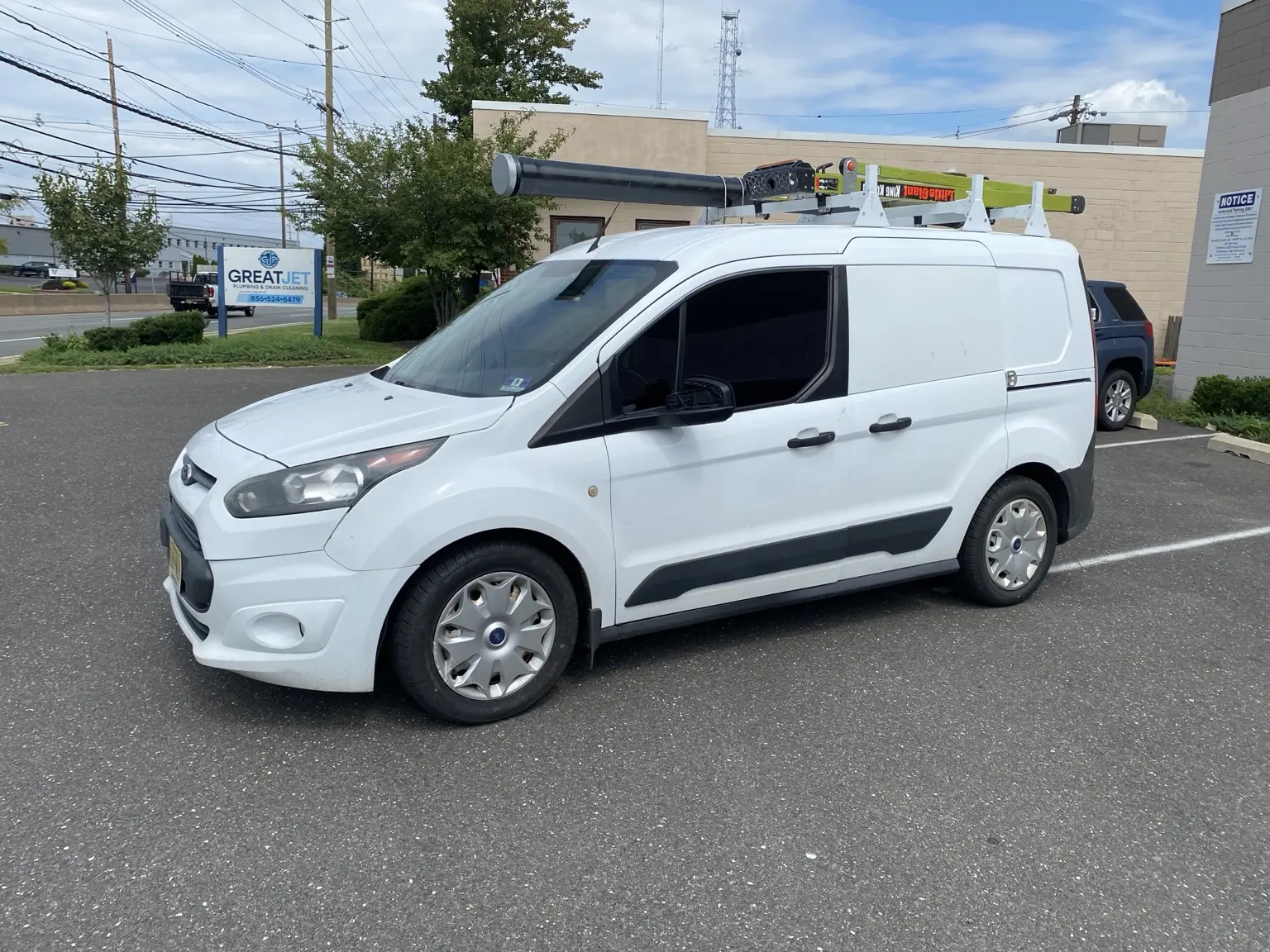

15% carbon front window tint gives a Ford Transit Connect work van a dark, silhouette-style appearance during daylight. On this real customer’s white 2014 Transit Connect, we installed the film on the two front roll-down windows and two fixed front quarter windows.

The black interior and windowless cargo area helped the front cabin appear darker from outside. Light entering through the large untreated windshield made the driver somewhat visible, but identifying the person required a closer look.

From inside, 15% remained clear during the day and manageable at night. Parking in a poorly illuminated area may require lowering a front window for a better view.

This actual customer installation included:

• 15% carbon window film
• Driver-side roll-down window
• Passenger-side roll-down window
• Driver-side fixed front quarter window
• Passenger-side fixed front quarter window
• Four tinted glass pieces in total
• Original front windshield left untreated

This was approximately the fifth vehicle the Pennsauken customer brought to Dope Tintings, although it was the first work van we tinted for him.

The customer initially considered 5% ceramic film because he had heard that ceramic tint would be easier to see through. We explained that ceramic construction does not make a 5% shade appear clear.

The percentage determines how much visible light passes through the film. A 5% ceramic film is still extremely dark and would be significantly more challenging to see through at night than 15% carbon.

He selected 15% carbon because it provided:

• A dark appearance without choosing 5%
• More manageable nighttime visibility
• Additional daytime privacy
• Heat rejection through the front windows
• A lower price than ceramic film
• Better value for a van that was not receiving windshield film

Ceramic would provide stronger solar performance, but he was not planning to tint the windshield. For his budget and installation goals, carbon was the more practical option.

The front windows create a silhouette appearance during daylight. Someone outside can generally tell that a person is inside the van, but identifying the driver requires standing close or looking through the untreated windshield.

The solid cargo section and black interior reduce the amount of light traveling through the cabin. That makes the front windows appear darker than they would on a passenger vehicle with glass surrounding the entire interior.

The white exterior does not make the tint itself look lighter or darker. Tint appearance is influenced primarily by:

• Interior color
• Light entering through untreated glass
• Reflections on the windows
• Sun position
• Viewing angle
• Surrounding lighting

In this case, the large windshield brightened the front cabin slightly, while the black interior and enclosed cargo area helped maintain the silhouette effect.

During daylight, 15% carbon provides a clear outward view through the front doors. Available sunlight makes surrounding vehicles, mirrors, intersections, and parking spaces easy to see.

At night, the film remains manageable under streetlights and normal business lighting. Visibility becomes more challenging in dark parking lots or poorly illuminated loading areas.

When backing into a tight space or parking somewhere without enough light, the driver may need to lower a window. Weather, eyesight, and familiarity with darker film can also affect nighttime comfort.

Yes, we recommend 15% for an experienced driver who wants a dark front-window appearance without going as dark as 5%. It offers a useful balance between daytime privacy and outward visibility.

For a commercial van, 15% can help reduce the open, exposed appearance of the front cabin while remaining easier to use than limo tint. Drivers who frequently work after dark should still consider the lighting conditions around their regular routes and job sites.

The percentage may be practical to drive with, but owners of New Jersey-registered commercial vehicles also need to consider inspection requirements before installing it.

It can. New Jersey applies different inspection requirements to commercial vehicles than it does to ordinary passenger vehicles.

The New Jersey Motor Vehicle Commission states that gasoline or bi-fuel vehicles registered with commercial X plates require annual safety and emissions inspections. Certain diesel commercial vehicles are also subject to annual inspection based on their registration and gross vehicle weight rating.

New Jersey’s commercial-vehicle inspection rules state that a vehicle cannot be certified when aftermarket tint film has been applied to the glazing immediately to the right or left of the driver.

Therefore, an affected Ford Transit Connect registered with commercial plates may need to have its front-door tint removed before its annual inspection and reinstalled afterward unless an applicable exemption has been approved.

Owners should confirm the requirements for their registration, fuel type, weight rating, and vehicle use before scheduling. Review the New Jersey MVC vehicle inspection FAQs, the state’s commercial glazing inspection rule, and our New Jersey window tint law guide for additional information.

This work-van example applies to the following model years:

• 2014 Ford Transit Connect
• 2015 Ford Transit Connect
• 2016 Ford Transit Connect
• 2017 Ford Transit Connect
• 2018 Ford Transit Connect
• 2019 Ford Transit Connect
• 2020 Ford Transit Connect
• 2021 Ford Transit Connect
• 2022 Ford Transit Connect
• 2023 Ford Transit Connect

The featured 15% carbon installation costs $199 and includes both front roll-down windows and both fixed front quarter windows.

The Ford Transit Connect is not eligible for the $99.99 or $149.99 promotional tint packages because it is classified and priced as a van.

Customers can compare available films and services on our window tint package page.

Financing is available for qualifying customers through American First Finance. Approval and payment terms are determined by the financing provider.

Does ceramic film make 5% tint easier to see through?
No. Ceramic describes the film’s construction and solar performance, while 5% describes its visible-light transmission. A 5% ceramic film remains extremely dark, especially at night.

Does the quoted front-window price include the fixed quarter windows?
Yes. The $199 carbon and $225 ceramic prices include the two roll-down windows and two fixed front quarter windows.

Will the tint need to be removed for commercial inspection?
A New Jersey commercial vehicle subject to annual inspection may not be certified with aftermarket film on the windows immediately beside the driver. Confirm the requirements for your specific registration before installing the film.

How long should the windows remain closed after installation?
Keep the roll-down windows closed for at least 24 hours. Temporary moisture, haze, or small water pockets may remain visible while the film cures.

Visit our Ford window tint photo gallery to compare additional Ford cars, trucks, SUVs, and vans tinted by Dope Tintings.

The customer was pleased with the completed Transit Connect and complimented the work, as he had with his previous vehicles. He plans to return when he has another vehicle ready for tint.

Dope Tintings installs Ford Transit Connect window tint for commercial and personal-use vans in Pennsauken and throughout South Jersey.
